Solid Timber
Solid Timber Chevron Bevel Edge
This AB-grade solid European oak chevron uses a 710 x 123 x 18 mm format and pronounced 3 mm bevel, with completed Balwyn North installation evidence.
Colour
Custom brown finish
Format
Chevron
Product overview
Published product details, performance information and installation guidance.

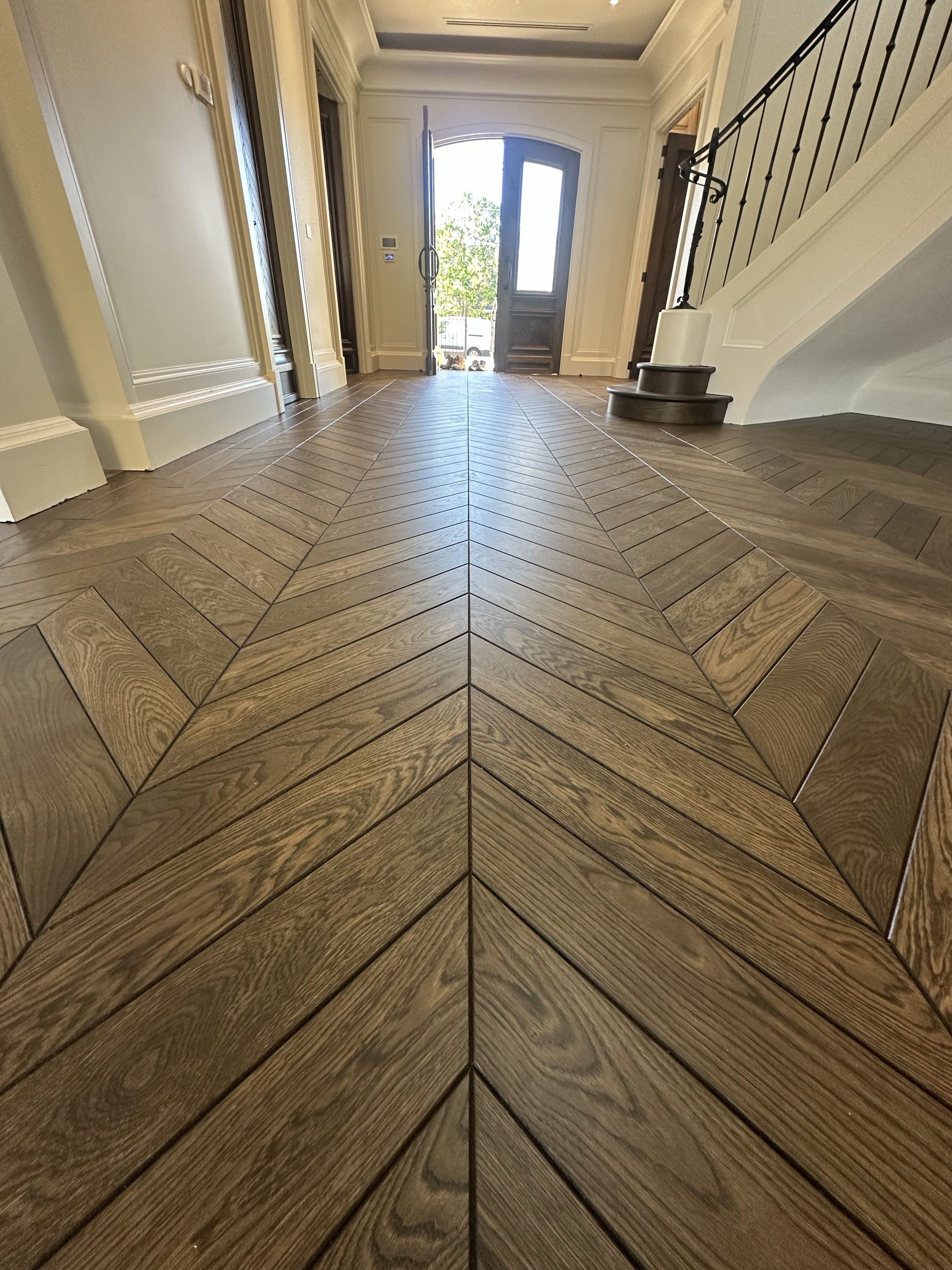

This solid European oak profile is designed for chevron floors where the geometry and the edge detail are intended to remain clearly visible. Each 710 × 123 × 18 mm piece is Select (AB) grade and has a pronounced 3 mm bevel that separates the runs of the pattern. Unlike a pre-coloured catalogue floor, the final brown finish and site detailing must be confirmed as part of the individual project specification. Solid chevron installation requires accurate control lines, a flat and stable substrate, full adhesive transfer and careful perimeter and transition planning. Direct-stick is the confirmed method. No water-resistance or underfloor-heating claim is made for this product, and the complete finish, moisture and installation system must be agreed before ordering. The linked Balwyn North case study documents this exact format through the entrance, hallways, living areas and a curved upper landing, together with coordinated stair detailing. It provides evidence of the bevel definition, pattern continuity and level of site planning required for a complex solid-timber installation.
Specifications
A consistent specification order is used across every product.
- Product code
- AWF-STC-710-123-18
- Colour
- Custom brown finish
- Timber species
- European oak
- Format
- Chevron
- Grade
- Select (AB)
- Finish
- 3 mm bevelled edge; custom finish shown in project photography
- Construction
- Solid timber
- Joint / locking system
- Not confirmed
Available sizes
Length × width × thickness
710 × 123 × 18 mm
Length
710 mm
Width
123 mm
Thickness
18 mm
Product notes
Direct-stick installation only. Confirm the substrate, moisture controls, adhesive, finishing system, control lines, transitions and expansion detailing for the specific project before ordering. No underfloor-heating or water-resistance claim is currently recorded.
Installation
Supported methods
Direct stick
Underfloor heating
Compatibility must be confirmed for the project
Installation evidence
Completed projects using this product
Confirmed Alpine Woods Flooring case studies linked to this exact product.
